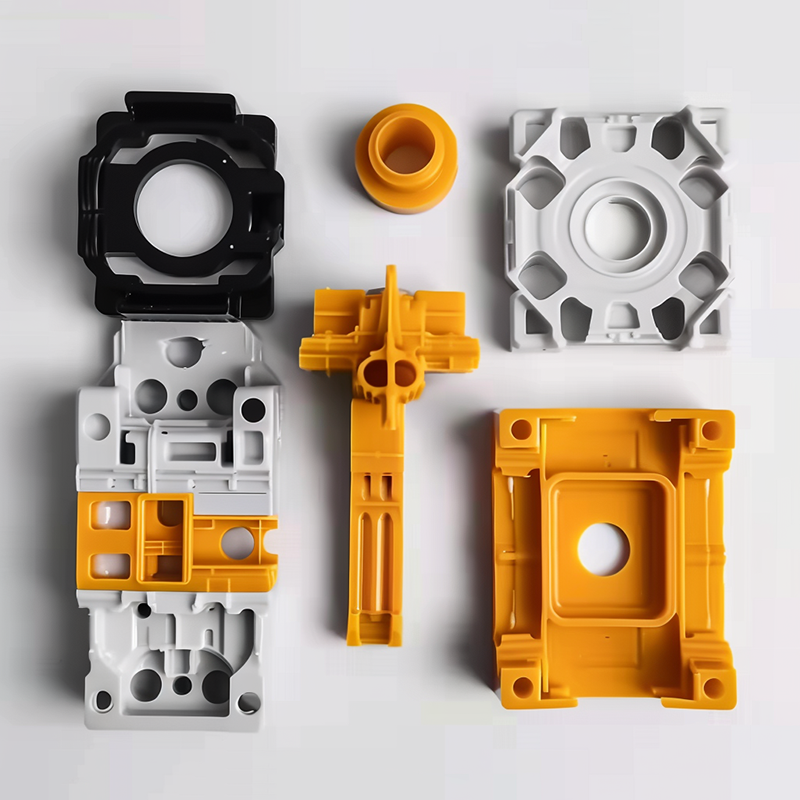

Custom Plastic Injection Solutions – Complex Shapes & Fast Turnaround

Product Detailed Description

Mastering Complex Geometries with Speed and Precision

At BIE, we specialize in producing plastic injection parts with challenging geometries—deep draws, thin walls, intricate ribs, and multi-slide mechanisms—that standard molding processes struggle to handle. Our engineering team leverages advanced simulation tools and modular mold systems to deliver components that meet both aesthetic and functional demands, all within compressed lead times.

Advanced Structural Capability
From deep-cavity housings to micro-feature components, we design molds with optimized gating, venting, and ejection systems to ensure complete filling and easy demolding.
Rapid Tooling & Production
With pre-hardened mold bases and standard component libraries, we cut mold fabrication time to 15–25 days. Expedited sampling is available in as few as 3–7 days.
High-Flow Material Expertise
We work extensively with materials commonly used in structural, functional, and appearance-critical parts, including ABS, PC, PA66/PA6 , POM, PP, PMMA. Our process technicians adjust temperature, pressure, and screw speed specifically for each resin to ensure stable filling and minimal warpage.

• Deep-Cavity & Undercut Components

Using collapsible cores, lifters, and split molds to form complex internal and external features.

• Thin-Wall Molding (0.4mm–1.0mm)

Balanced multi-point gating and high-speed injection ensure uniform filling and minimal warping.

• Multi-Slider & Internal Thread Designs

Automated unscrewing mechanisms and servo-driven sliders enable high-volume production of threaded and undercut parts.

• Rapid DFM Feedback

Receive manufacturability analysis within 24–48 hours of submitting your 3D files.

• Quick-Mold Assembly

Standardized mold bases and pre-machined components reduce fitting and trial time.

• Fast Sampling & Validation

First-shot samples are produced within 3–7 days after mold completion.

We recommend high-performance thermoplastics based on your functional requirements:

• ABS & PC– General purpose, good impact strength
• PA66– High stiffness, heat resistance
• PEEK– Extreme thermal and chemical resistance
• POM– Low friction, high dimensional stability

Each material is tested for flow length, shrinkage, and compatibility with your geometry.

• Warpage & Sink Marks

Optimized cooling channel layout and gate positioning reduce internal stress and cosmetic defects.

• Short Shots in Thin Sections

High injection speed and pressure, combined with vacuum venting, ensure complete cavity fill.

• Part Ejection without Damage

Custom ejector designs—including sleeve ejectors and air poppets—protect delicate features.

• Robotics & Drones

Lightweight structural frames, sensor mounts, motor housings.

• Advanced Electronics

Interlocking enclosures, heat-resistant connectors, EMI-shielded components.

• New Energy Vehicle Systems

Battery module housings, charging port covers, thermal management parts.

• Mold Fabrication: 15–25 days
• Sample: 3–7 days
• Mass Production: 2–3 weeks
• Expedited options available for prototyping and pilot runs

• In-mold sensors monitor cavity pressure and temperature in real time.
• 100% dimensional inspection of first articles using CMM and optical scanners.
• Mold flow analysis validation before mass production.

Cooperation Process

• Drawing Submission & Feasibility Check
• Quotation & Project Confirmation
• Mold Design & Process Planning
• Mold Fabrication & Trial Run
• Sample Adjustment & Final Approval
• Mass Production & On-Time Delivery

Technical Specifications

Start Your Complex Project Today

Submit your 3D files for a free DFM analysis and project quote. Let BIE help you bring innovative designs to market—faster.
