Our 5-axis CNC machining service enables the production of complex, high-accuracy components. Tight tolerances up to ±0.01 mm are supported, with online quoting available for custom metal and plastic parts.

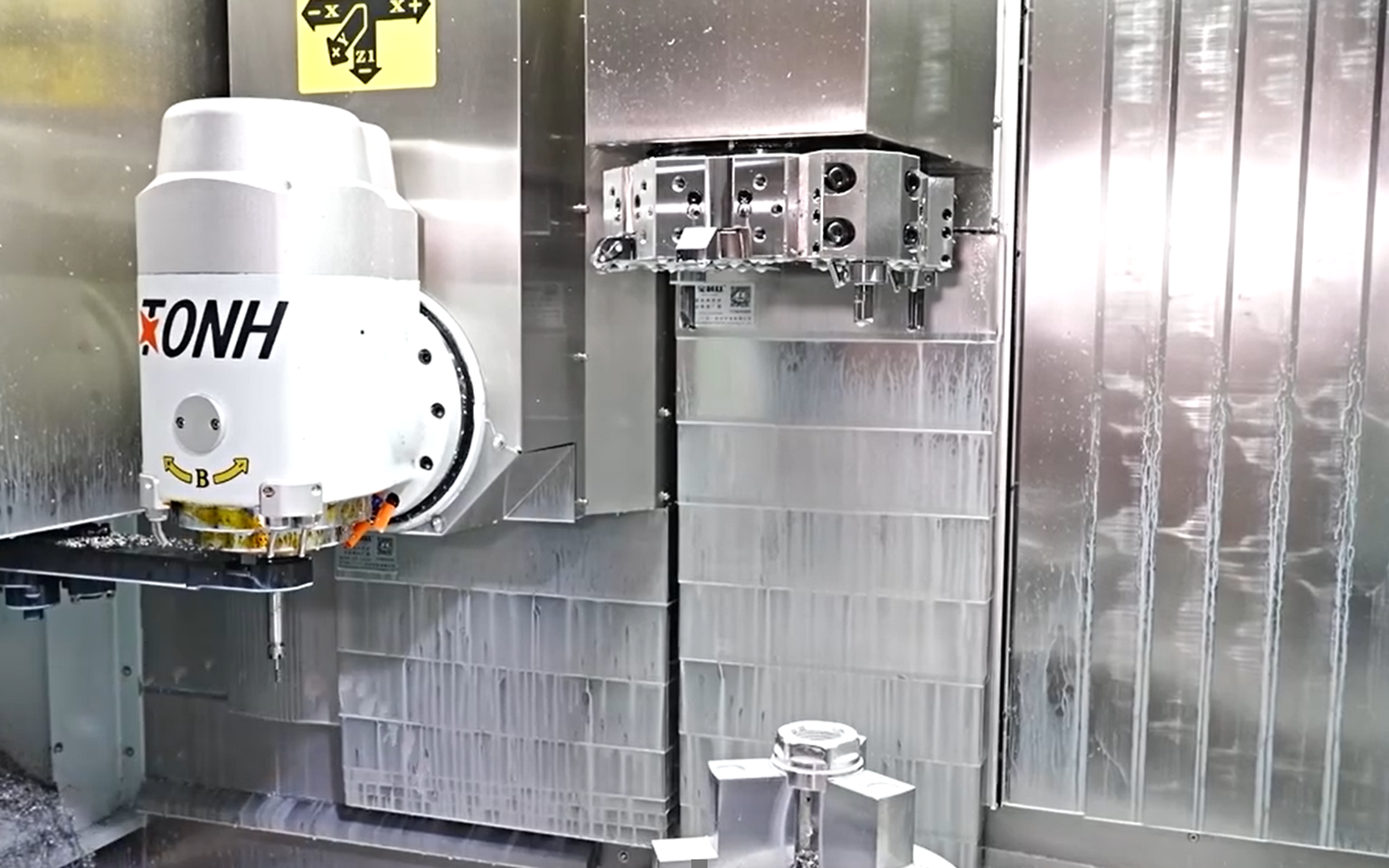

5-axis machining is a CNC process in which the cutting tool moves along three linear axes (X, Y, Z) while the workpiece or tool simultaneously rotates on two additional axes. This allows the tool to machine a part from multiple angles in a single setup.

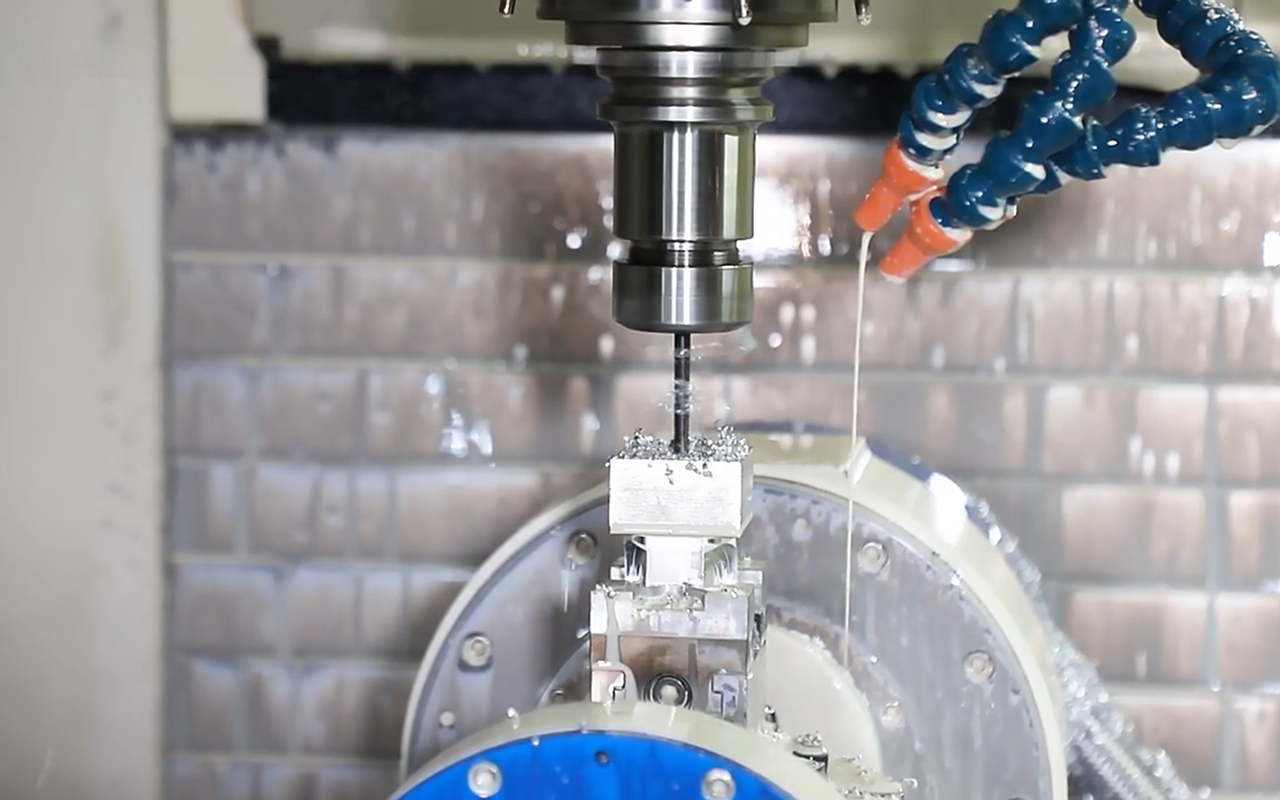

By maintaining optimal tool orientation during cutting, 5-axis machining enables accurate machining of complex geometries, angled features, and contoured surfaces. Fewer setups help reduce positioning errors and improve overall dimensional consistency.

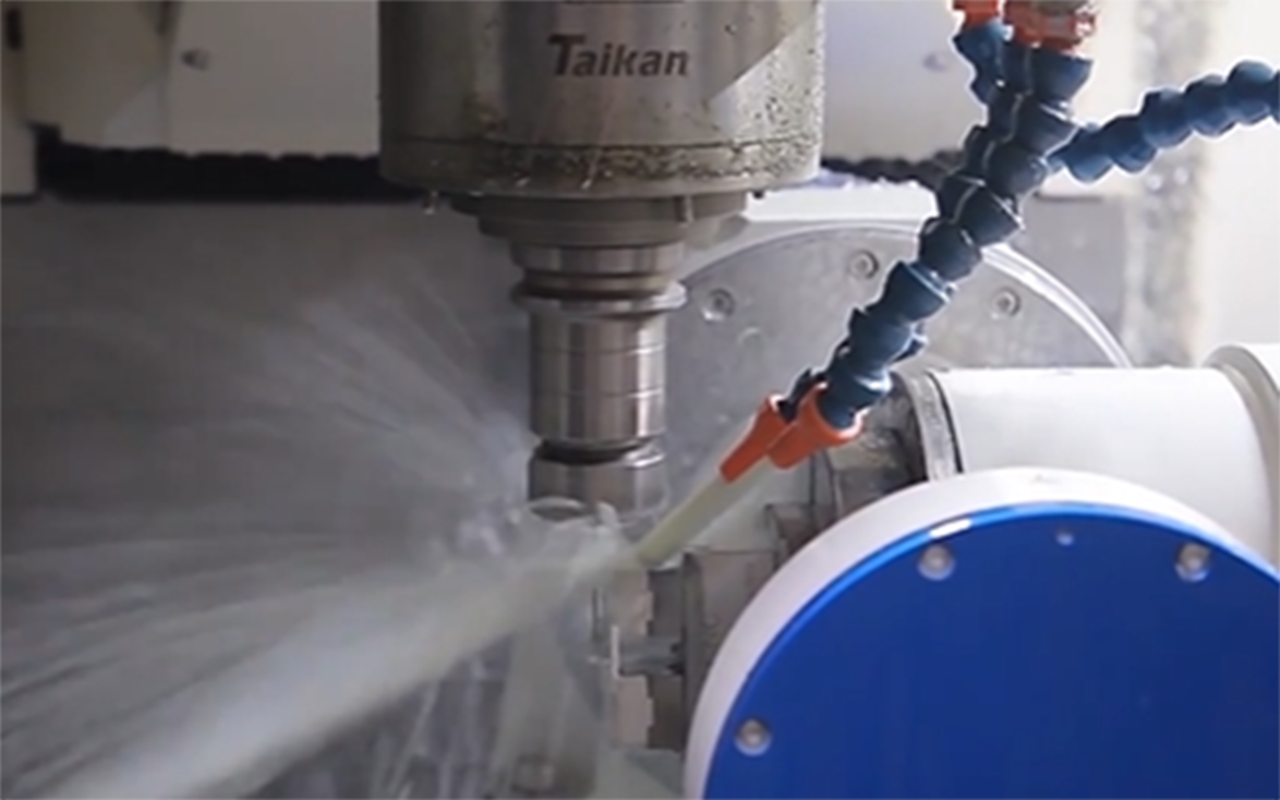

3-axis CNC machining allows cutting along three linear axes (X, Y, and Z) and is suitable for parts with simple geometries, flat surfaces, and basic contours. While it is highly accurate and cost-effective for many applications, complex shapes often require multiple setups, additional fixturing, and manual repositioning, which increases production time and the risk of cumulative errors.
In contrast, 5-axis CNC machining adds two rotary axes, enabling the cutting tool to approach the workpiece from virtually any angle. This allows for the efficient production of intricate geometries, deep cavities, angled features, and contoured surfaces in a single setup. The result is higher precision, reduced setup time, fewer fixture changes, and improved surface finish, making it ideal for aerospace, medical, automotive, and other high-complexity parts.
A wide selection of metals and plastics can be processed using 5-axis CNC machining, enabling accurate machining of complex features across different material types. Choosing the appropriate material helps optimize machining efficiency, part performance, and overall cost. Engineering support is available to assist with material selection when needed.
Surface finishes are applied to enhance part performance, durability, and appearance. We offer a wide range of finishing options compatible with 5-axis CNC machined components to meet functional and application-specific requirements.
| Surface Finish | Description |
|---|---|
| As Machined | Parts are delivered directly after CNC milling, with visible tool marks remaining. Suitable for functional components where surface appearance is not a primary concern. |
| Anodizing | An electrochemical surface treatment primarily used for aluminum parts to enhance corrosion resistance, surface hardness, and color consistency. |
| Polishing | Reduces surface roughness to achieve a smooth, refined finish, improving appearance and reducing friction in functional areas. |
| Sand Blasting | Applies abrasive media to create a uniform matte texture, improving surface consistency or preparing parts for additional coatings. |
| Brushing | Creates a controlled linear texture on visible surfaces, commonly used where a consistent directional finish is required. |
| Powder Coating | Applies a durable protective layer that improves corrosion resistance and provides a wide range of color options. |
| Electroplating | Deposits a thin metal layer to improve corrosion resistance, wear performance, or electrical conductivity. |
| Black Oxide | A chemical conversion coating mainly used on steel parts, providing mild corrosion protection and a uniform black appearance. |
| Passivation | Enhances corrosion resistance of stainless steel parts by removing surface contaminants and free iron from the surface. |
| Heat Treatment | Alters material properties of milled parts to improve hardness, strength, or wear resistance based on application requirements. |
Optimize your designs for accuracy, efficiency, and cost-effectiveness with these key guidelines for 5-axis CNC machining.
| Design Feature | Recommended Size | Description |
|---|---|---|
| Minimum Feature Size | ≥ 0.6 mm | Improves edge stability and reduces the risk of chipping or deformation. |
| General Tolerance | ±0.01 mm | Suitable for most functional features while keeping cost and yield balanced. |
| Hole Diameter | ≥ 1.0 mm | Maintains better roundness and consistency without secondary processes. |
| Slot Width | ≥ 0.8 mm | Reduces distortion and improves dimensional repeatability. |
| Wall Thickness | Metals ≥ 1.0 mm Plastics ≥ 1.2 mm | Helps prevent warping and ensures sufficient part strength. |
| Threads | M3 – M20 | Common sizes provide reliable thread quality and long-term performance. |
| Internal Corners | Use fillets where possible | Enhances strength and improves dimensional consistency. |
| Pocket Depth | Moderate depth-to-width ratio | Helps maintain flatness and surface quality across the pocket. |
Our 5-axis CNC machining service delivers precision, efficiency, and versatility for complex parts. From intricate prototypes to high-precision production components, we ensure tight tolerances, consistent quality, and a wide selection of materials to bring your designs to life with confidence.
Parts are reviewed by experienced engineers to ensure manufacturability, precision, and stable production results.
Complete multi-sided parts in one operation, minimizing errors and ensuring feature alignment.
Handle undercuts, deep pockets, and intricate shapes that 3-axis machining can’t achieve.
Maintain tight tolerances down to ±0.01 mm for critical features, supporting reliable assembly.
A diverse selection of materials and complete surface treatment options are available, tailored to clients’ project specifications
BIE serves global clients with dedicated engineering assistance and reliable shipping for seamless production and delivery.
Submit your 2D drawings or 3D CAD files along with materials, tolerances, and finish requirements.
Receive a detailed quotation and lead time. Our engineers review your design and provide practical feedback.
Parts are machined to your specifications and undergo thorough in-process and final quality checks.
Specify finishes or assembly needs. We apply optional treatments and assemble as required.
Finished parts are carefully packed and shipped worldwide, ready to use or integrate.
