Custom CNC Aluminum Clevis Bracket with ±0.01 mm machining capability and black anodized finish. Suitable for OEM projects and batch production. Send your drawing for a quote.
Our CNC Aluminum Clevis Bracket is a custom-machined part used for mounting and connecting components in mechanical assemblies.
The part is made from aluminum by CNC milling. It has several machined holes, recessed areas, and a raised clevis section. These features allow the bracket to connect with pins, bolts, shafts, or other mating parts.
The black anodized surface improves corrosion resistance and gives the part a clean and uniform appearance.
Each CNC Aluminum Clevis Bracket is made to customer drawings. The material, size, hole position, tolerance, and surface finish can all be customized.
The CNC Aluminum Clevis Bracket is produced by CNC milling.
This process is suitable for machining holes, pockets, counterbores, flat surfaces, and complex profiles. It also helps keep important dimensions consistent from one part to another.
For mounting brackets, hole position is especially important. Poor hole alignment can cause assembly problems.
CNC machining helps control these dimensions and improves repeatability during batch production.
Aluminum is widely used for custom mechanical parts because it is light, strong, and easy to machine.
A CNC Aluminum Clevis Bracket can reduce weight compared with a similar steel part. This is useful for equipment where weight matters.
Common material options include:
The final material should be selected according to the required strength, cost, and working conditions.

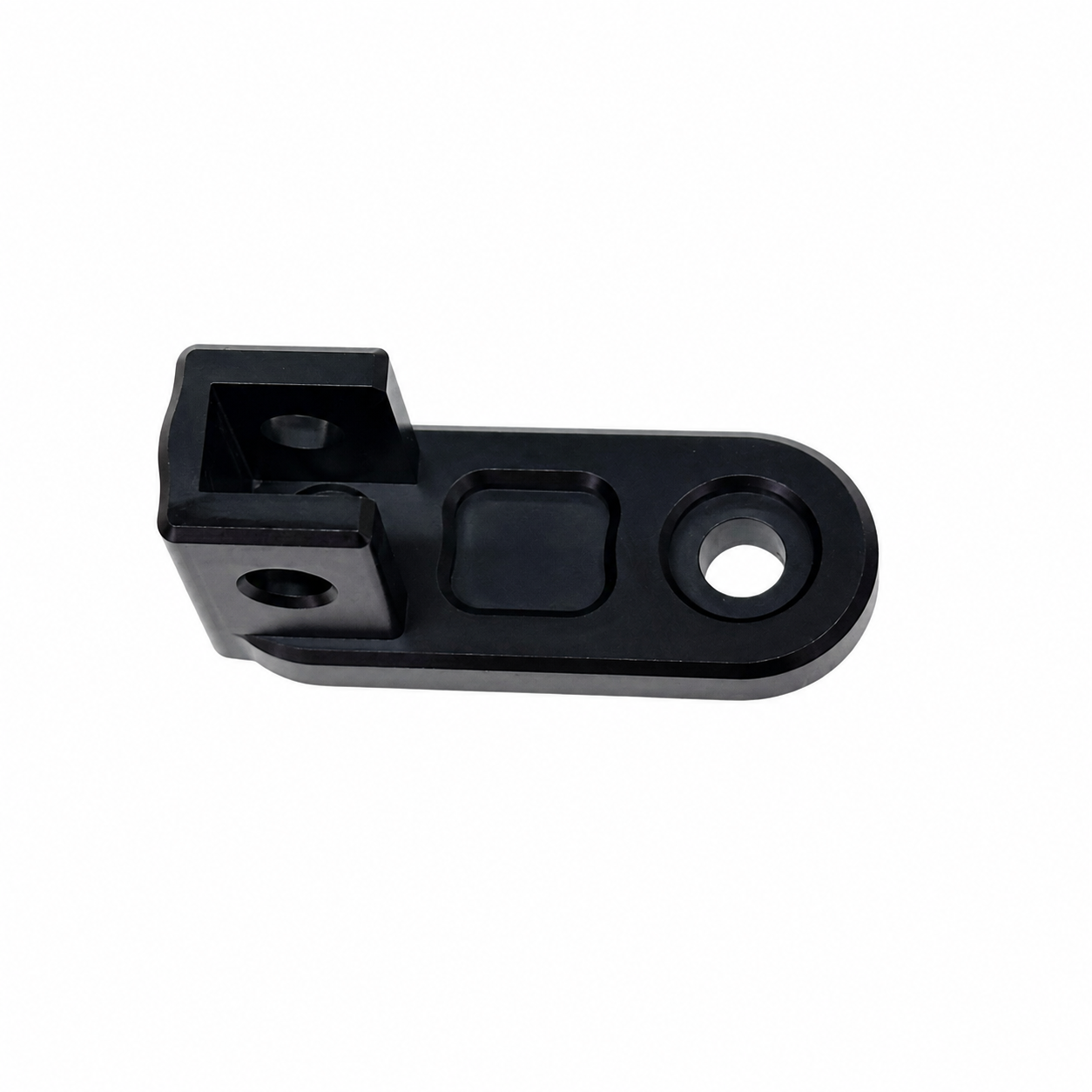

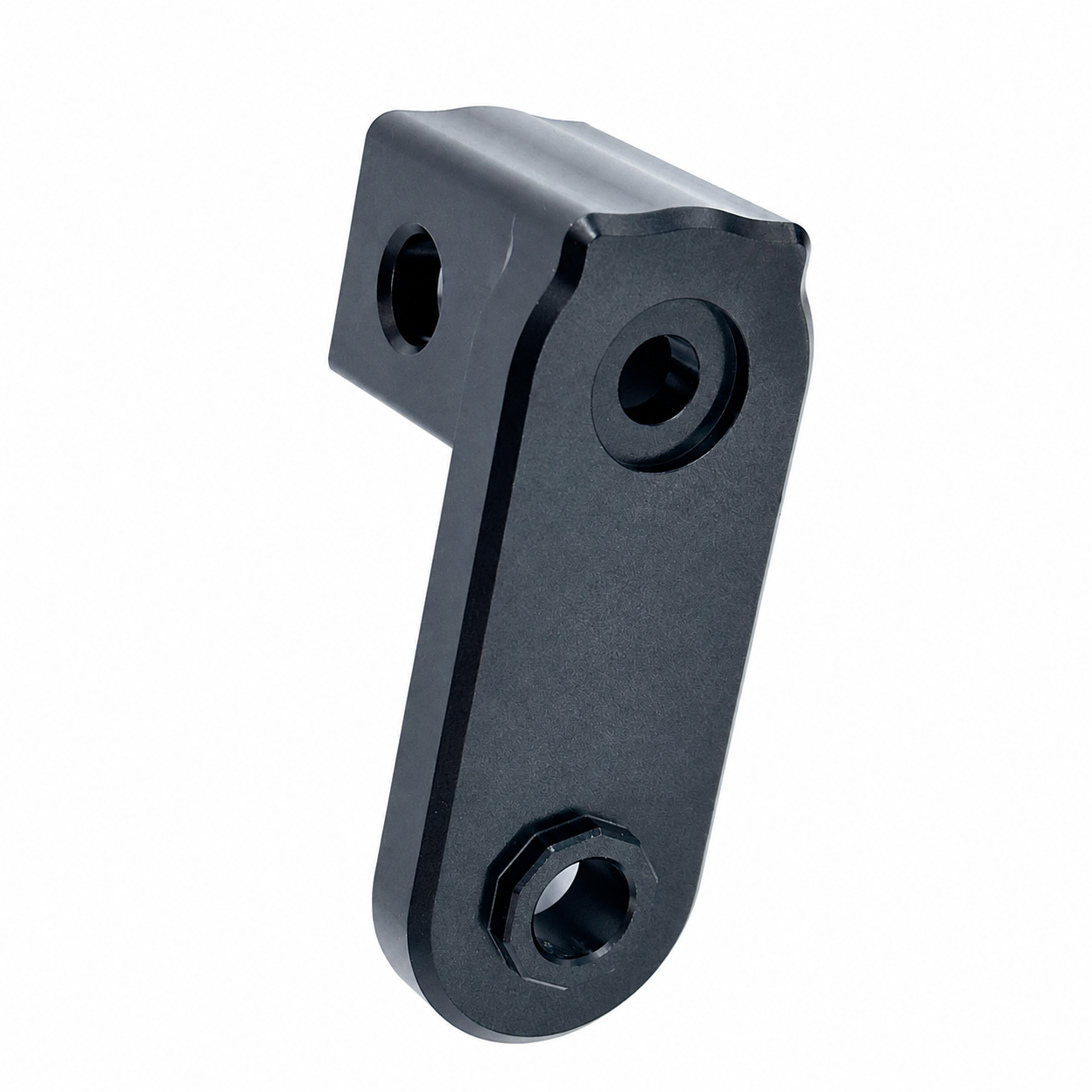

The pictured CNC Aluminum Clevis Bracket has a black anodized finish.
Anodizing creates a protective oxide layer on the aluminum surface. It improves corrosion resistance and surface durability.
Black anodizing also gives the bracket a more uniform appearance.
For a softer matte texture, bead blasting can be added before anodizing.
This CNC Aluminum Clevis Bracket is made according to customer drawings. It is not a standard off-the-shelf part.
The following features can be customized:
This makes the part suitable for custom OEM equipment and repeat production projects.
| Parameter | Specification |
|---|---|
| Product Type | CNC Aluminum Clevis Bracket |
| Material | Aluminum 6061 / 6063 / 6082 / 7075 |
| Manufacturing Process | CNC Milling |
| General Machining Tolerance | ±0.01 mm capability |
| Critical Tolerance | Down to ±0.005 mm where required |
| Surface Finish | Black Anodizing |
| Optional Finish | Bead Blast + Black Anodizing |
| Hole Features | Through holes / counterbores / recesses |
| Edge Treatment | Chamfer / radius / deburring |
| Production Type | Prototype to batch production |
| Inspection | Dimensional inspection / CMM if required |
| File Formats | STEP / STP / IGES / DWG / DXF / PDF |
A CNC Aluminum Clevis Bracket is usually machined from a solid piece of aluminum.
This is different from a fabricated bracket, which may be made from several cut, bent, or welded parts.
| Comparison | CNC Machined Bracket | Fabricated Bracket |
|---|---|---|
| Hole Accuracy | High control | Depends on assembly |
| Complex Features | Easy to machine | May need extra processes |
| Welding | Not required | May be required |
| Surface Consistency | More uniform | Can vary at joints |
| Custom Geometry | High flexibility | Better for simple shapes |
CNC machining is often a better choice when the part has several holes, pockets, and precise mounting features.
Fabrication may be more economical for simple brackets with large dimensions and loose tolerances.
The right process depends on the design and production quantity.
The CNC Aluminum Clevis Bracket can be used in many types of mechanical equipment.
The clevis section can connect to a pin or pivot.
This type of design is often used when two components need to rotate or move relative to each other.
The machined holes allow the bracket to be fixed to a machine frame or another component.
Accurate hole positions help improve assembly consistency.
A CNC Aluminum Clevis Bracket can be used in custom automation systems, fixtures, and moving mechanisms.
Its lightweight aluminum structure is useful for applications where moving mass should be controlled.
The bracket can also be used to position or support other components.
CNC machining allows the mounting surfaces and holes to be produced accurately.
The design can be changed according to the final equipment.
Customers can adjust the dimensions, holes, material, and surface finish to match their own assembly.
Production of the CNC Aluminum Clevis Bracket normally starts with a review of the customer's drawing or 3D model.
Our engineers check the main machining requirements, including:
The part is then CNC milled according to the approved drawing.
Critical dimensions can be checked during machining. Finished parts are inspected again before shipment.
If black anodizing is required, the parts are cleaned and sent for surface treatment after machining.
A final inspection can also be carried out after anodizing.
Consistent quality is important for repeat production.
Each CNC Aluminum Clevis Bracket can be inspected according to the drawing requirements.
Inspection can include:
CMM inspection can also be provided when the drawing contains complex dimensional requirements.
Inspection reports are available according to project needs.
Black anodizing is the finish shown on this CNC Aluminum Clevis Bracket, but other finishes are also available.
Options can include:
The best finish depends on the required appearance, wear resistance, corrosion resistance, and working environment.
We support custom CNC Aluminum Clevis Bracket projects from sample production to repeat batch orders.
Typical sample lead time is about 3–7 days. Batch production time depends on quantity, material, tolerance, and surface treatment.
Before production, we can review your drawing and check whether the part is suitable for CNC machining.
We can also provide suggestions for features that may increase machining time or cost.
To receive a quotation, please send:
Send us your drawing for a custom CNC Aluminum Clevis Bracket quotation and manufacturing review.
