Rapid Prototyping Plastic Injection Molding Solutions for B2B Manufacturers and Distributors

Rapid prototyping plastic injection molding is a core solution for B2B manufacturers seeking fast, precise, and cost-effective production of complex plastic components. Leveraging hundreds of thermoplastic and thermosetting materials, including high-performance engineering plastics, this process ensures high strength-to-weight ratios, excellent chemical resistance, and superior electrical insulation for electronic housings. With advanced mold design, thin-wall precision, and embedded component capabilities, manufacturers can produce highly intricate prototypes, functional parts, and small series production with repeatable accuracy. ISO-certified facilities guarantee quality consistency, short lead times, and scalable production, making this technology ideal for industries ranging from automotive and aerospace to medical devices and consumer electronics.
Get A Quote

Rapid Prototyping Plastic Injection Molding

Rapid prototyping plastic injection molding offers unparalleled benefits for B2B operations by combining speed, precision, and flexibility. The technology allows manufacturers to test complex designs, integrate multiple functions into single components, and achieve high repeatability for production runs ranging from prototype to mass production. Supported by ISO 9001:2015 and RoHS standards, this process ensures material integrity, dimensional stability (±0.02mm), and superior surface finish. High-performance plastics like PEEK, reinforced PA, and polycarbonate deliver excellent thermal, chemical, and mechanical properties. Multi-cavity molds and automated systems provide scalable efficiency, while advanced mold techniques, including gas-assisted and insert molding, reduce material waste and assembly costs. These advantages collectively optimize product development cycles, accelerate time-to-market, and enhance overall supply chain efficiency.

High-Speed, Precise Production Enabling Rapid Prototyping and Small-Series Manufacturing

Rapid prototyping injection molding achieves cycle times as low as 15–60 seconds per part depending on geometry, enabling small-batch prototypes or limited production series without compromising dimensional precision. Using closed-loop servo-controlled machines and advanced mold sensors, manufacturers consistently reach ±0.02mm tolerance, with repeatable results verified across 100,000+ parts. ISO 9001-certified facilities guarantee quality consistency, while multi-cavity molds allow simultaneous production of up to 16 identical components, significantly accelerating product iteration cycles for automotive, medical, and electronics applications.

Material Versatility Ensuring High Strength-to-Weight Ratios and Specialized Functional Properties

This process supports hundreds of thermoplastics, thermosets, and high-performance engineering plastics, including PEEK, reinforced PA, PBT, and PC. By integrating glass fibers or mineral fillers, parts achieve strength-to-weight ratios approaching metals, while low-density polymers reduce overall component weight by 20–40%. Chemical resistance is certified to ASTM D543 standards, and flame-retardant grades meet UL94 V-0. Electrical insulation and biocompatibility certifications expand applications into medical devices and sensitive electronics. Optical clarity options allow transparent or specialized infrared/UV-transmissive components for precise optical functionality.

Integrated Functionality Reducing Part Count and Optimizing Assembly Costs for Complex Components

Rapid prototyping injection molding enables multi-functional components with embedded inserts such as metal fasteners, magnets, or electronics, reducing assembly steps by 30–50%. Gas-assisted and micro-foam molding enhance wall strength, prevent sink marks, and allow intricate internal geometries. IMD, IML, and IMR processes facilitate high-quality surface decoration and functional integration in a single molding operation. This approach lowers system-level costs, shortens time-to-market, and meets B2B requirements for precision, durability, and consistency, verified through ISO and RoHS compliance.

Related Products

Rapid prototyping plastic injection molding has been extensively tested across B2B manufacturing scenarios, proving its value in producing functional prototypes and small-series production components with unmatched speed and precision. In automotive electronics applications, thin-wall housings with wall thickness as low as 0.3mm were produced with ±0.02mm tolerance, maintaining mechanical integrity and surface finish without post-processing. Medical device prototypes using biocompatible PEEK and ABS demonstrated excellent chemical resistance and sterilization compatibility. Gas-assisted molding minimized sink marks in thick sections, while embedded inserts such as metal fasteners, magnets, and circuit elements reduced assembly steps by 40%. Multi-cavity molds allowed 8–16 identical components to be produced simultaneously, enhancing efficiency and cost-effectiveness.
Custom Plastic Injection Parts - Precision Molding for Automotive & Electronic Components VIEW DETAILS

Custom Plastic Injection Parts - Precision Molding for Automotive & Electronic Components

Custom Plastic Injection Solutions – Complex Shapes & Fast Turnaround VIEW DETAILS

Custom Plastic Injection Solutions – Complex Shapes & Fast Turnaround

Precision Plastic Injection Moulding Parts – Tight Tolerance & Durable Finish VIEW DETAILS

Precision Plastic Injection Moulding Parts – Tight Tolerance & Durable Finish

Custom Plastic Injection Moulding Parts – Multi-Material & High Precision VIEW DETAILS

Custom Plastic Injection Moulding Parts – Multi-Material & High Precision

Founded in 2017, Dongguan BIE Hardware Co., Ltd. is a precision manufacturing leader located in Fenggang Town, Dongguan, Guangdong Province, China, occupying a modern 3,000㎡ production facility. Specializing in CNC machining, sheet metal fabrication, die casting, and plastic injection molding, BIE provides comprehensive one-stop manufacturing solutions for both metal and plastic components.

BIE’s rapid prototyping plastic injection molding capabilities are integrated with advanced CAD/CAM systems, precision mold-making, and automated production lines, allowing for functional prototypes, pilot production, and full-scale manufacturing. The company maintains a library of over 300 thermoplastic and thermosetting materials, including reinforced PA, PBT, PC, and PEEK, enabling customers to achieve specific mechanical, thermal, chemical, and optical properties. Through reinforced and glass-fiber-filled plastics, components reach high strength-to-weight ratios comparable to metals, supporting applications in automotive, aerospace, medical, lighting, consumer electronics, and industrial equipment.

Quality assurance is at the core of BIE’s operations. The company holds ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and RoHS certifications. Advanced metrology equipment—including CMMs, laser scanners, and optical profilometers—ensures that all components meet ±0.02mm tolerances. In production, closed-loop servo-controlled injection molding machines, multi-cavity molds, and process monitoring via IoT sensors maintain consistent dimensional accuracy and surface quality, verified through batch sampling and functional testing. BIE’s mold design expertise allows for insert molding, multi-color injection, gas-assisted molding, and thin-wall high-precision parts, reducing assembly steps by up to 50% and optimizing supply chain efficiency.

BIE’s process supports rapid iteration and flexible production strategies, enabling clients to bring products to market faster. Embedded component integration, IMD/IML/IMR decoration, and gas-assisted technologies allow functional and aesthetic requirements to be met in a single molding operation. Small-batch or high-volume production is equally supported, with mold lifespans exceeding 1,000,000 cycles for long-term economic efficiency.

Beyond production, BIE offers full lifecycle support including prototyping, tooling, production, finishing, assembly, and post-sales technical assistance. Customer service is available 24/7, assisting with design optimization, material selection, and supply chain logistics. The company maintains a global client base, predominantly in Europe and North America, and continually invests in digital and smart factory technologies, including MES integration, digital twins, and AI-driven process optimization, achieving up to 80% energy savings with fully electric injection systems.

BIE emphasizes sustainability, incorporating recycled plastics, bioplastics, and low-carbon manufacturing practices. Rapid prototyping and small-series production capabilities allow clients to minimize waste, optimize material use, and adapt quickly to market changes. The company’s culture focuses on integrity, quality, and innovation, delivering precision manufacturing solutions that align with client specifications, regulatory standards, and global supply chain requirements. BIE has successfully completed projects for top-tier automotive, aerospace, consumer electronics, and medical device clients, achieving consistent on-time delivery, high yield, and long-term client satisfaction.

In summary, Dongguan BIE Hardware Co., Ltd. combines advanced technology, certified quality systems, flexible production capacity, and extensive industry expertise to provide high-precision, cost-effective, and reliable rapid prototyping plastic injection molding services for global B2B clients.

FAQ

How quickly can BIE deliver functional prototypes using rapid prototyping plastic injection molding?

BIE’s rapid prototyping plastic injection molding process is optimized for speed and precision, allowing functional prototypes to be produced within 5–15 business days, depending on complexity and material selection. Utilizing advanced CAD/CAM integration, multi-cavity molds, and fully electric servo-controlled injection machines, BIE ensures consistent dimensional accuracy (±0.02mm) and excellent surface finish. Materials span hundreds of thermoplastics and thermosets, including reinforced PA, PEEK, and PC, meeting requirements for mechanical strength, thermal stability, chemical resistance, and optical properties. Insert molding and gas-assisted techniques are available to reduce post-processing steps and improve structural integrity.
Absolutely. BIE specializes in complex geometries, thin-wall parts, and multi-material components using advanced mold design and injection techniques. Components with wall thickness as low as 0.3mm can be consistently produced, while integrated inserts such as metals, electronics, or magnets can be overmolded in a single process. IMD/IML/IMR decoration methods allow aesthetic requirements to be met without secondary operations. Gas-assisted molding is employed for thick-walled or hollow parts to prevent sink marks and warping, ensuring dimensional stability. The use of high-performance materials like glass-fiber reinforced PA or PEEK enables high strength-to-weight ratios approaching metal equivalents. Every production batch undergoes rigorous inspection with CMM and optical measurement systems to maintain ISO-certified tolerances, ensuring B2B clients can trust these components for functional testing, pilot production, or small-series deployment.
BIE guarantees quality, repeatability, and scalability through a combination of certified processes, automated equipment, and rigorous quality control. All injection molding operations are monitored using IoT-enabled sensors, closed-loop servo systems, and real-time process analytics to maintain consistent temperature, pressure, and flow rates. Multi-cavity molds and rapid mold change systems enable scalable production, from prototypes to small or medium-volume batches, without compromising dimensional precision (±0.02mm). Finished parts are subjected to CMM inspection, optical scanning, and functional testing. ISO 9001:2015, ISO 14001:2015, ISO 45001:2018, and RoHS certifications provide verified assurance of compliance with international quality and environmental standards.

More Posts

What Parameters are Needed for Custom cnc lathe machining services Services? Process Guide

31

Jan

What Parameters are Needed for Custom cnc lathe machining services Services? Process Guide

In the highly competitive B2B manufacturing space, custom CNC lathe machining services are often the backbone of product development and industrial production. However, despite their critical role, misunderstandings about process parameters frequentl...
View More
What are the Common Quality Issues with machining services? Prevention and Solutions

31

Jan

What are the Common Quality Issues with machining services? Prevention and Solutions

The Critical Importance of Quality in Machining Services In today's precision manufacturing landscape, machining services play a vital role across automotive, aerospace, electronics, and industrial automation sectors. The ability to produce complex c...
View More
How to Choose the Right cnc machining stainless steel Supplier? Evaluation Criteria and Methods

31

Jan

How to Choose the Right cnc machining stainless steel Supplier? Evaluation Criteria and Methods

In modern manufacturing, stainless steel has become indispensable across industries ranging from medical devices to food processing, chemical equipment, automotive, and aerospace. Its strength, hardness, and corrosion resistance make it a preferred m...
View More
How to Choose the Right mold manufacturing Supplier? Evaluation Criteria and Methods

31

Jan

How to Choose the Right mold manufacturing Supplier? Evaluation Criteria and Methods

Evaluation Criteria and Practical Methods for Global Buyers In global manufacturing supply chains, mold manufacturing is not just a procurement task—it is a strategic decision that directly affects product quality, production efficiency, delive...
View More

Customer Reviews

Anna Schmidt

"As a product development manager for a European medical device company, we required highly precise prototypes of complex ergonomic components for usability testing. BIE’s rapid prototyping plastic injection molding exceeded our expectations. The thin-wall parts (0.35mm) were produced with excellent dimensional stability, and the overmolded inserts were perfectly integrated, saving us multiple assembly steps. The surface finish was flawless, meeting both aesthetic and functional requirements, and all materials used were certified biocompatible. From order to delivery, the turnaround was only 10 business days, enabling us to accelerate our design validation process significantly. The team also provided detailed inspection reports with CMM measurements and tolerance verification, ensuring complete confidence in our prototypes. Overall, the service drastically reduced our product iteration cycles and helped us stay ahead in a highly competitive market."

Mark Johnson

"We engaged BIE for rapid prototyping of a new consumer electronics enclosure, requiring transparent and opaque sections with high-strength and heat-resistant materials. The injection molded prototypes demonstrated exceptional strength-to-weight ratio due to glass-fiber reinforcement, while maintaining precise wall thickness and tight tolerances (±0.02mm). Functional testing confirmed excellent mechanical and thermal performance, and the embedded inserts were accurately placed for internal PCB alignment. The fast delivery, consistent quality, and professional communication made BIE an indispensable partner for our R&D team. Furthermore, the team provided expert guidance on material selection and molding techniques, including gas-assisted molding to prevent sink marks and warping, which proved critical for our final product design validation."

Li Wei

"As an industrial equipment manufacturer, we needed a rapid prototyping solution that could bridge the gap between 3D printed models and full-scale production components. BIE’s rapid prototyping plastic injection molding service provided prototypes with real-world mechanical performance, high chemical resistance, and reliable dimensional accuracy. Their team utilized multi-cavity molds and automated production techniques, enabling consistent batch quality for our small-scale pilot production. The parts arrived ready for assembly testing, with surface quality and structural integrity exceeding our expectations. The ISO-certified quality management system and RoHS compliance further reinforced our trust in BIE’s capabilities. This partnership allowed us to accelerate product development, reduce design risks, and confidently transition from prototype to production-ready molds in a matter of weeks."

Get a Free Quote

Our representative will contact you soon.
Email
Name
Company Name
Message
0/1000
Attachment
Please upload at least an attachment
Up to 3 files，more 30mb，suppor jpg、jpeg、png、pdf、doc、docx、xls、xlsx、csv、txt、stp、step、igs、x_t、dxf、prt、sldprt、sat、rar、zip

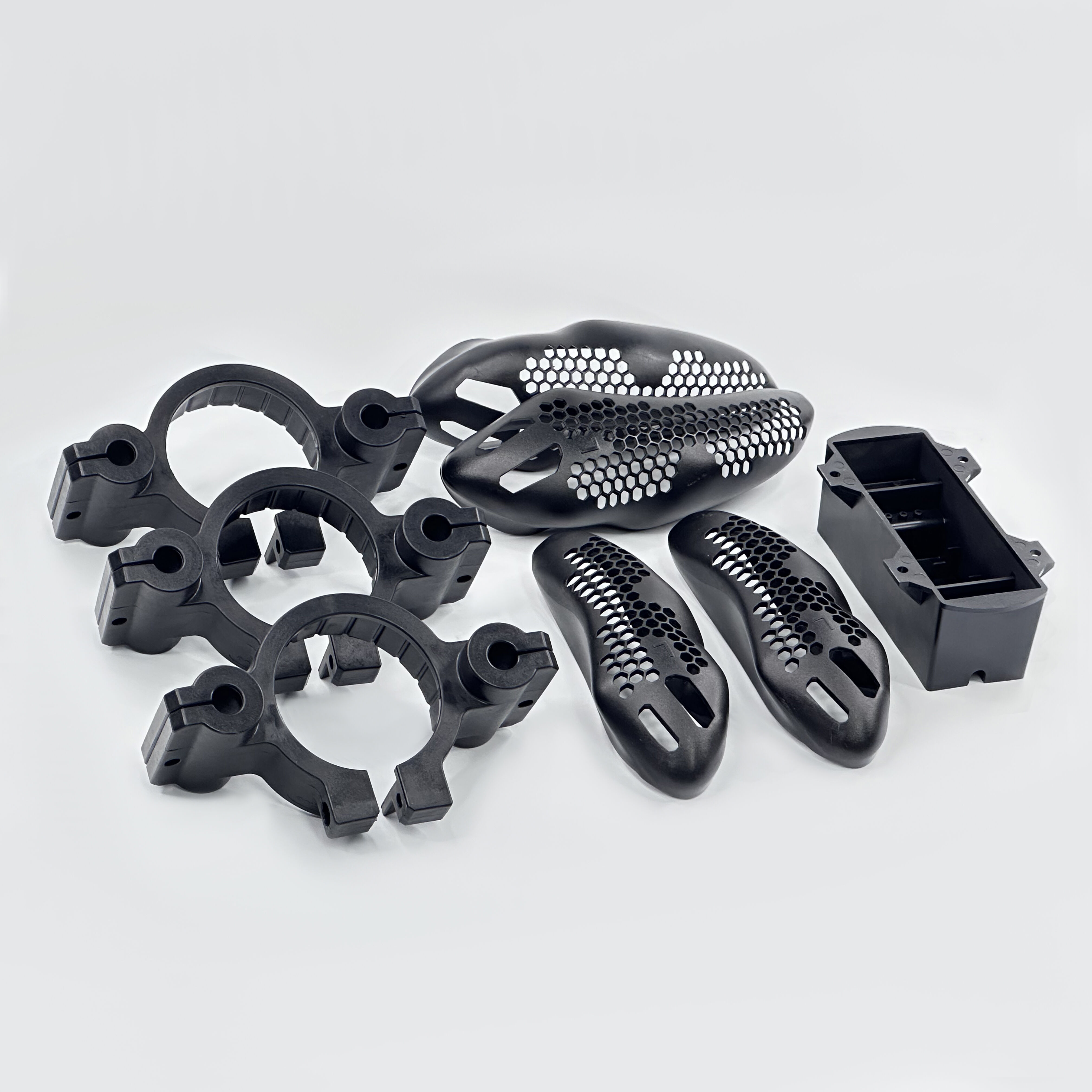

Exceptional Dimensional Accuracy and Thin-Wall Precision for Rapid Prototyping Plastic Injection Molding

Exceptional Dimensional Accuracy and Thin-Wall Precision for Rapid Prototyping Plastic Injection Molding

BIE’s rapid prototyping plastic injection molding achieves unparalleled dimensional precision, with high-accuracy molds capable of maintaining ±0.02mm tolerances even for thin-wall components as thin as 0.3mm. This level of precision ensures that prototypes are representative of final production parts, enabling realistic testing for fit, function, and assembly. Our quality control system employs CMM inspections and in-line sensors to continuously monitor part dimensions, ensuring consistent replication across multi-cavity molds. In a recent automotive electronics project, over 500 prototype parts were produced with less than 0.5% deviation, allowing engineers to validate design performance, reduce iterations, and accelerate time-to-market.
Fast Turnaround and Efficient Production for Large-Volume Prototype Testing

Fast Turnaround and Efficient Production for Large-Volume Prototype Testing

Leveraging automated injection molding systems, multi-cavity molds, and rapid mold-change technologies, BIE delivers rapid prototyping at scale without compromising quality. Typical lead times for complex prototypes are reduced to 7–14 business days, compared to traditional tooling or 3D printing methods that often require weeks. The fully digital workflow, including CAD-to-CNC mold fabrication and IoT-enabled process monitoring, ensures repeatable cycle times and precise control over part quality. In a consumer electronics project, BIE successfully produced 1,000 prototype units with uniform wall thickness, no sink marks, and A-grade surface finish, enabling comprehensive functionality and assembly testing before full-scale production.

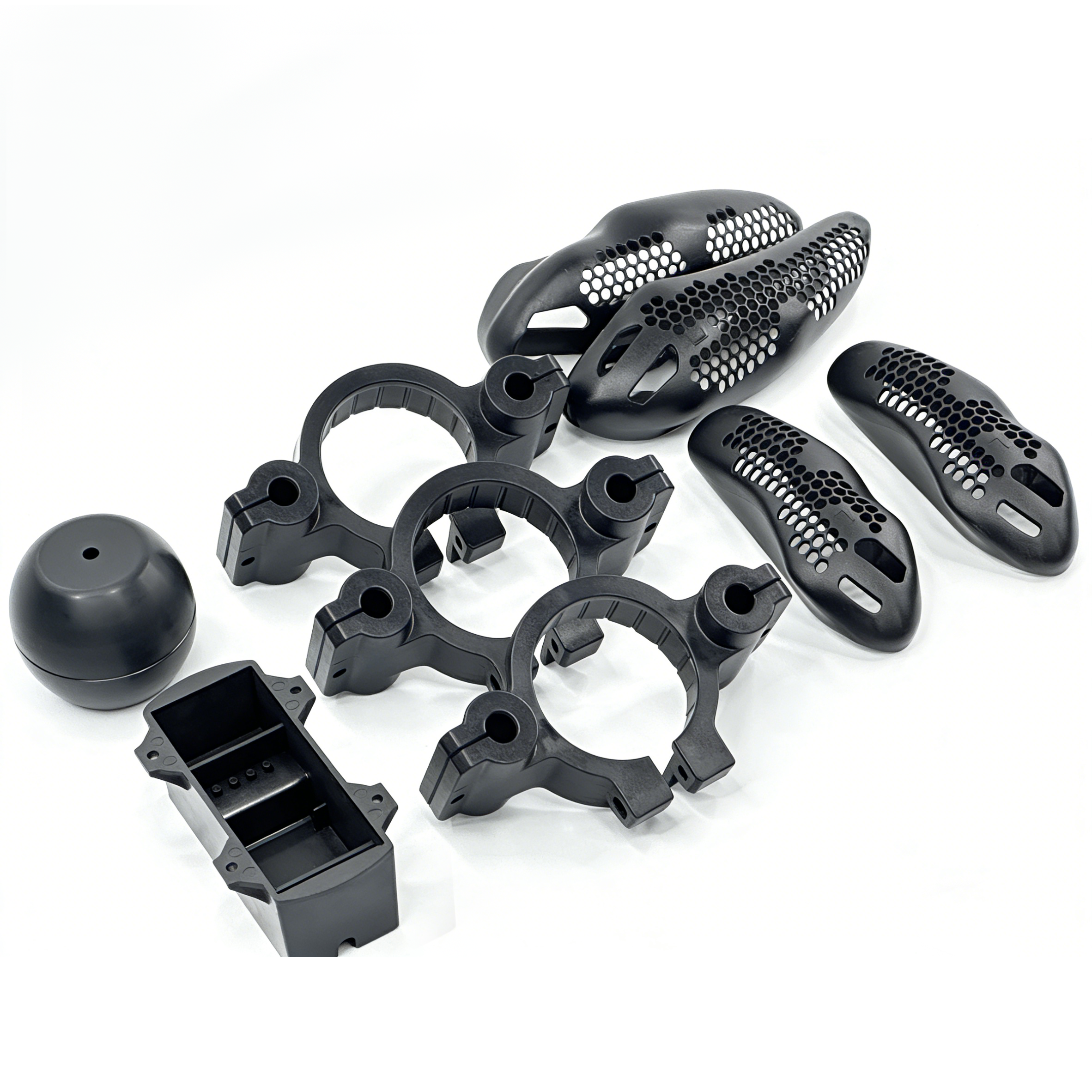

Material Versatility and Functional Integration in Rapid Prototyping Plastic Injection Molding

Material Versatility and Functional Integration in Rapid Prototyping Plastic Injection Molding

BIE’s service supports hundreds of thermoplastic and thermoset materials, including reinforced PEEK, PA, ABS, PC, and medical-grade biocompatible resins, allowing prototypes to replicate final production characteristics. Gas-assisted and multi-material injection techniques enable complex geometries, hollow structures, and embedded metal or electronic inserts. For example, in a recent aerospace instrumentation prototype, overmolded housings with embedded sensors were produced with excellent chemical resistance, high electrical insulation, and precise optical transparency where required. The prototypes passed functional tests simulating real operational conditions, including thermal cycling from -40°C to 120°C and mechanical load testing exceeding 500N on critical sections.
