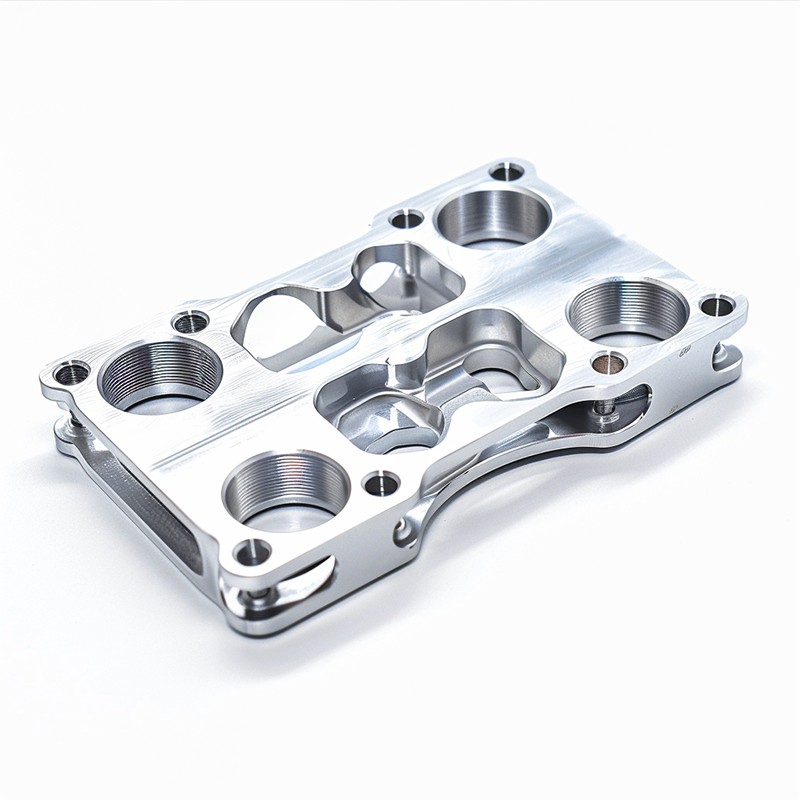

CNC Machined Steel Parts – Strength Meets Accuracy

Where Structural Integrity Meets Micron-Level Precision

BIE redefines the boundaries of steel component manufacturing with our CNC machined steel parts that deliver uncompromised strength and accuracy in perfect harmony. We understand that true engineering excellence lies not in choosing between durability and precision, but in achieving both simultaneously. Our specialized manufacturing approach ensures that every component maintains its structural integrity while meeting the most demanding dimensional requirements.

In applications where failure is not an option, our high-strength precision steel components provide the reliability and performance that engineers and designers depend on for critical systems and safety-conscious applications.

The foundation of strength begins with material selection. Our expertise covers the full spectrum of high-strength steels:

High-Tensile Alloy Steels

• 4140/4340 alloy steels offering tensile strength up to 1,400 MPa with excellent impact resistance
• Stress-proof steel variants maintaining dimensional stability under extreme loading conditions
• Through-hardening capabilities for uniform strength characteristics throughout the component cross-section

Stainless Steel Solutions

• 17-4PH precipitation hardening stainless achieving 1,100-1,300 MPa tensile strength after heat treatment
• 15-5PH corrosion-resistant alloy maintaining strength in aggressive environments while providing good machinability
• Custom heat treatment protocols to optimize the strength-to-toughness ratio for specific applications

Tool and Die Steels

• D2 cold work tool steel delivering high compressive strength and wear resistance up to HRC 62
• H13 hot work steel maintaining strength at elevated temperatures up to 540°C
• Specialized heat treatment to achieve optimal microstructure for both strength and dimensional stability

Machining high-strength steels to tight tolerances requires specialized techniques:

Thermal Management Strategy

• Controlled machining temperatures to prevent work hardening and maintain material integrity
• Advanced coolant delivery systems ensuring consistent thermal conditions during heavy machining operations
• Post-machining stress relief to stabilize components and prevent future dimensional changes

Tooling and Process Optimization

• Specialized tool geometries designed specifically for high-strength steel machining
• Adaptive feed rate control maintaining optimal chip loads to prevent tool deflection and work hardening
• Multi-pass machining strategies balancing material removal rates with precision requirements

Microstructure Preservation

• Machining parameter optimization to prevent surface damage and micro-cracking in hardened materials
• Surface integrity monitoring ensuring the base material properties remain unaffected by machining processes
• Non-destructive testing to verify internal structure integrity after machining operations

Our machining approach supports customers in achieving both reliable strength and stable precision in their steel components.

Feature Optimization

• Rational wall-thickness planning to ensure parts remain rigid during machining and in final use.
• Smooth transitions between structural sections to reduce internal stress and avoid deformation
• Practical geometry refinement that keeps parts strong while ensuring all features can be machined efficiently

Tolerance Strategy

• Focus on truly critical dimensions, ensuring accuracy where it directly affects assembly or performance
• Clear definition of datums and functional relationships to avoid unnecessary tight tolerances
• Tolerance recommendations based on machining feasibility, balancing accuracy needs with stable manufacturability

Material Selection Framework

• Selection of commonly used steels (e.g., 45#, S45C, 4140, stainless steels) based on strength, stability, and machinability
• Consideration of wear, corrosion, and load requirements to match the material with the working environment
• Support for cost-effective solutions, offering materials that provide reliable performance without unnecessary over-specification

Our manufacturing methodology ensures both strength and accuracy are preserved:

Precision Machining Protocols

• Rigid machining setups using custom fixtures to minimize vibration and deflection
• Multi-stage machining approach with intermediate stress relief for complex components
• Key features are checked during machining to avoid cumulative deviation and ensure consistent accuracy throughout the production run

Strength & Durability Optimization

• Material-appropriate cutting strategies reduce heat buildup, protect material integrity, and ensure surfaces remain strong after machining
• Enhanced finishing techniques—including polishing, brushing, and controlled heat-based treatments—improve surface hardness, wear resistance, and appearance without sacrificing precision
• Surface conditioning for reliability, ensuring fatigue resistance and long-term stability in components that undergo repeated stress

Surface Quality & Functional Performance

• Uniform surface refinement to enhance appearance quality and improve functional contact areas
• Performance-focused finishing methods such as heat treatment, black oxide, and powder coating to elevate durability and corrosion resistance
• Protective and cosmetic enhancements tailored to each component’s structural role, ensuring both high performance and a premium finish

Our high-strength precision steel parts excel in the most challenging applications:

Aerospace and Defense Systems

• Landing gear components requiring both ultimate strength and precise fitment
• Weapon system elements where reliability and accuracy are equally critical
• Flight control actuators demanding high cycle life with minimal dimensional variation

Energy and Heavy Industry

• Turbine and compressor components operating under extreme pressures and temperatures
• Hydraulic system elements where both pressure integrity and precise clearances matter
• Mining and construction equipment facing impact loads while maintaining functional accuracy

Automotive Performance Systems

• Racing transmission components handling extreme torque with precise gear mesh requirements
• High-performance engine parts combining thermal strength with dimensional stability
• Suspension and chassis elements where safety and precision must coexist

Industrial Automation and Robotics

• Robot arm components requiring stiffness for accuracy and strength for payload capacity
• Linear motion systems where both load capacity and positioning precision are essential
• End-of-arm tooling demanding both structural integrity and precise feature location

We validate both strength and accuracy through comprehensive testing:

Dimensional Verification

• Complete CMM inspection with temperature compensation for large components
• Surface topography analysis to verify critical sealing and bearing surfaces
• Optical measurement systems for complex geometries and hard-to-reach features

Mechanical Testing

• Hardness Verification: Measuring hardness on key areas of the part to confirm the material condition matches customer requirements and the intended application
• Surface Condition Assessment: Inspecting machined surfaces for burrs, micro-cracks, or heat-affected zones to ensure long-term reliability in real operating environments
• Structural Integrity Check: Evaluating wall thickness, fillet transitions, and load-bearing features to ensure components maintain strength after machining, especially for parts with reduced sections or deep pockets

Performance Validation

• Assembly Function Testing: Verifying smooth fit, movement, and alignment when parts are paired with customer-provided samples or fixtures
• Operational Simulation: Manually cycling sliding, rotating, or load-bearing features to ensure stability and consistent performance
• Environmental Suitability Review: Inspecting surface protection, anti-corrosion requirements, and material stability based on the customer’s usage environment

Our quality system addresses both strength and precision requirements:

Material Certification

• Chemical analysis verification for every material batch
• Mechanical property testing to confirm strength characteristics
• Traceability maintenance from raw material to finished component

Manufacturing Process Validation

• Statistical process control for critical manufacturing parameters
• Tool life monitoring to ensure consistent machining quality
• Preventive maintenance schedules to maintain equipment accuracy

Final Component Verification

• 100% dimensional inspection for all critical features
• Surface quality assessment against specified requirements
• Documentation package including all test results and certifications

Selection Guidance for Optimal Performance

Choose the right combination of strength and precision for your application:

High-Strength, Standard Precision

• Applications:Structural components, mounting brackets, heavy machinery parts
• Recommended Materials:1045 carbon steel, 4140 alloy steel
• Typical Tolerances:±0.05mm

Balanced Strength and Precision

• Applications:Gears, shafts, hydraulic components
• Recommended Materials:4340 alloy steel, 17-4PH stainless
• Typical Tolerances:±0.02mm

High-Strength, High-Precision

• Applications:Aerospace components, medical instruments, precision mechanisms
• Recommended Materials:Tool steels, maraging steels
• Typical Tolerances:±0.01mm or better

Engineering Partnership Approach

Our technical team works with you to optimize your component design:

Application Analysis

• Load case evaluation to determine strength requirements
• Precision need assessment for proper tolerance allocation
• Manufacturing review to identify potential production challenges

Value Engineering

• Material alternative suggestions to optimize cost and performance
• Design modification proposals to enhance manufacturability
• Process optimization to reduce lead times while maintaining quality

Technical Support

• Material selection assistance based on your specific requirements
• Prototype development to validate design concepts
• Production scaling from prototype to full volume manufacturing

Contact us today to discuss how our strength and accuracy combination can benefit your next project. Submit your requirements for a comprehensive technical proposal.
